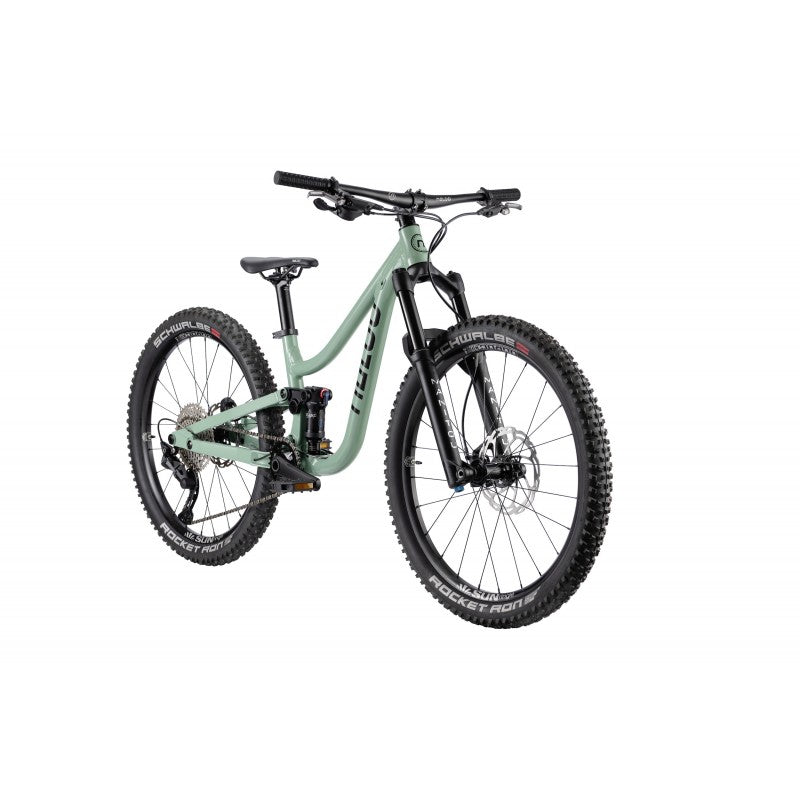

Naloo Mountain Jack 24" 11-Speed

Perfectly sized, no compromise, full-suspension MTB for kids that shred!
CHF 82.00

58-74 cm inseam
Subscriptions: monthly payments; 12 month minimum contract; upgrades possible after 6 months
Description

Like all Mountain Jack's, the 24" also has an air suspension fork and an air shock that can be precisely adjusted to the rider's weight.  Both elements also have a child-specific basic setup, which differs significantly from suspension forks and shocks for adults. Together with our ergonomic add-on parts and our well thought-out frame an unbeatable combination!

Child-specific ergonomics:

  • Lightweight
  • Kids' specific components and suspension dampening
  • Thoughtful geometry including low bottom bracket increases stability
  • Low chainstay for less chain slap
  • Cranks with an extra narrow, 149mm, Q-factor
  • Handlebar with 12° backsweep for ergonomic hand position
  • Extra small diameter handlebar for small hands, with twist-proof grips.

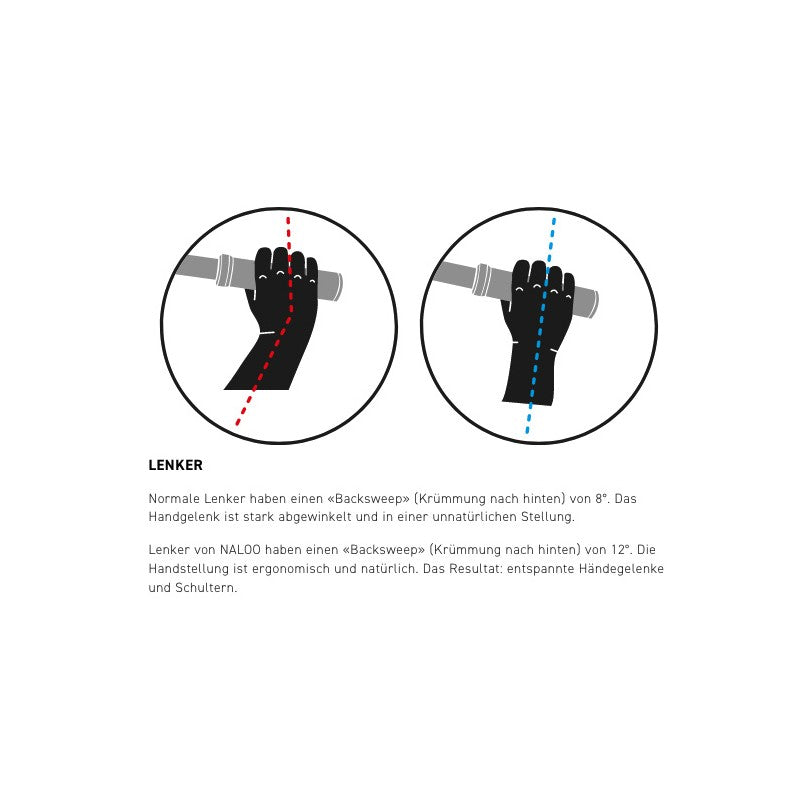

HANDLEBAR

Normal handlebars have a backsweep of 8°. The wrist is severely bent and in an unnatural position. NALOO handlebars have a backsweep of 12°. The hand position is ergonomic and natural. The result: relaxed wrists and shoulders.

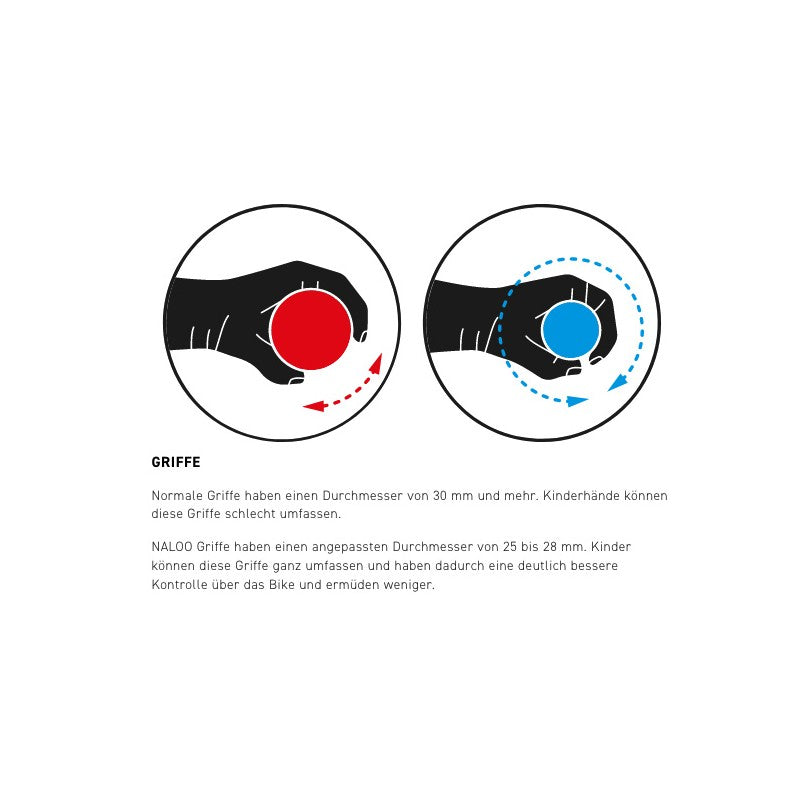

GRIPS
Normal grips have a diameter of 30 mm or more which children's hands can find hard to grip. NALOO grips have an adapted diameter of 25 to 28 mm. Children can completely wrap their hands around these grips and thus have much better control over the bike and tire less.

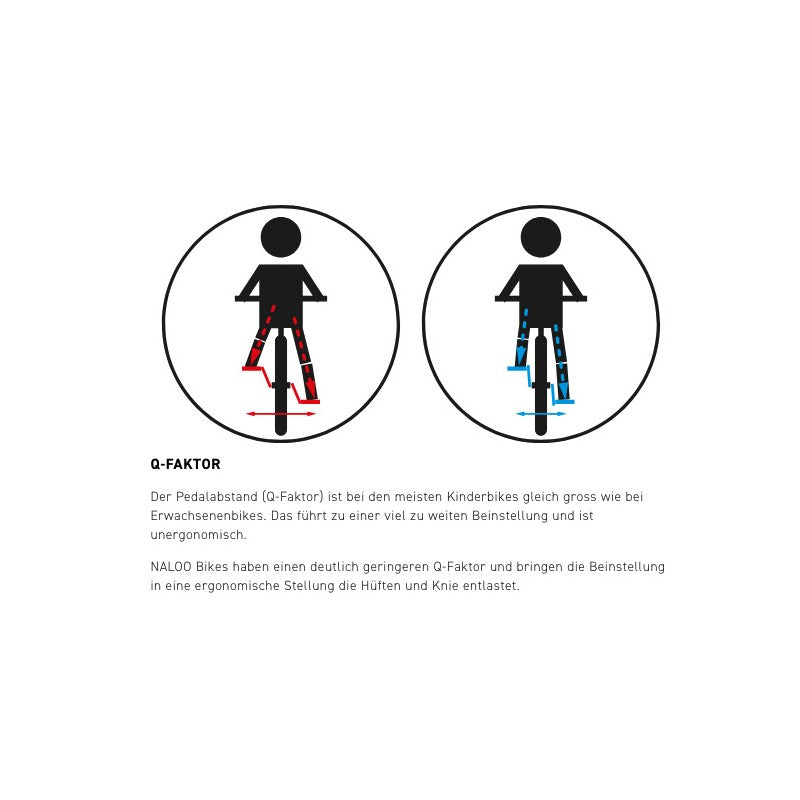

Q FACTOR
The pedal spacing (Q-factor) on lower-quality children's bikes is often the same as on adult bikes. This leads to a far too wide leg position which is unergonomic. NALOO bikes have a significantly lower Q-factor and bring the leg position into an ergonomic position that relieves those smaller hips and knees.

For children from approx. 7 years.

Specifications

WEIGHT
11.9 kg (without pedals)

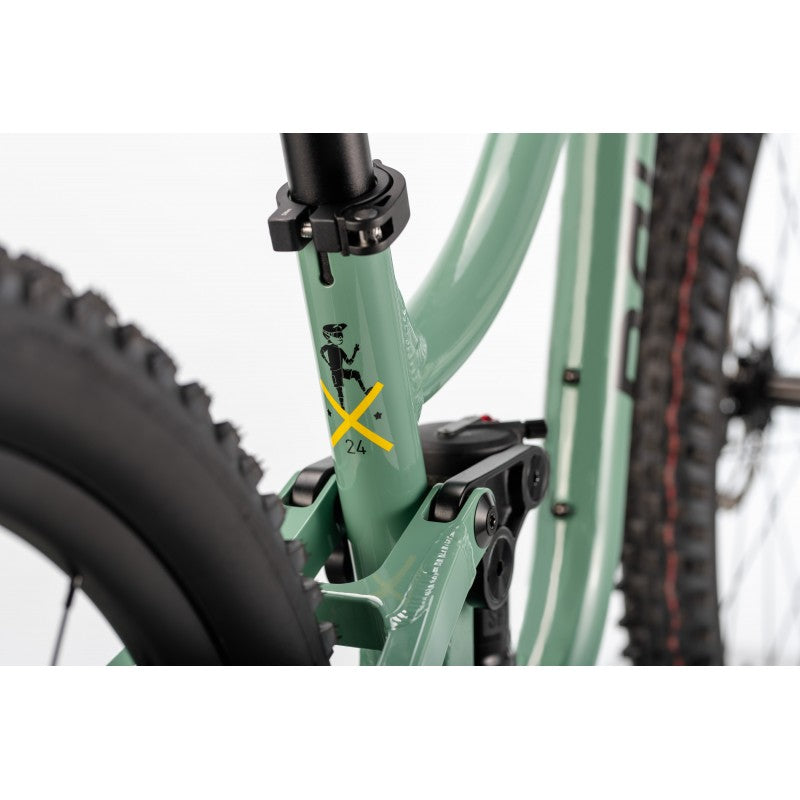

FRAME
Custom butted 6061-T6 aluminum. Four-bar linkage with HorstLink, optimized kinematics for children. Rear axle: 12mm rear thru axle. Sram UDH derailleur hanger

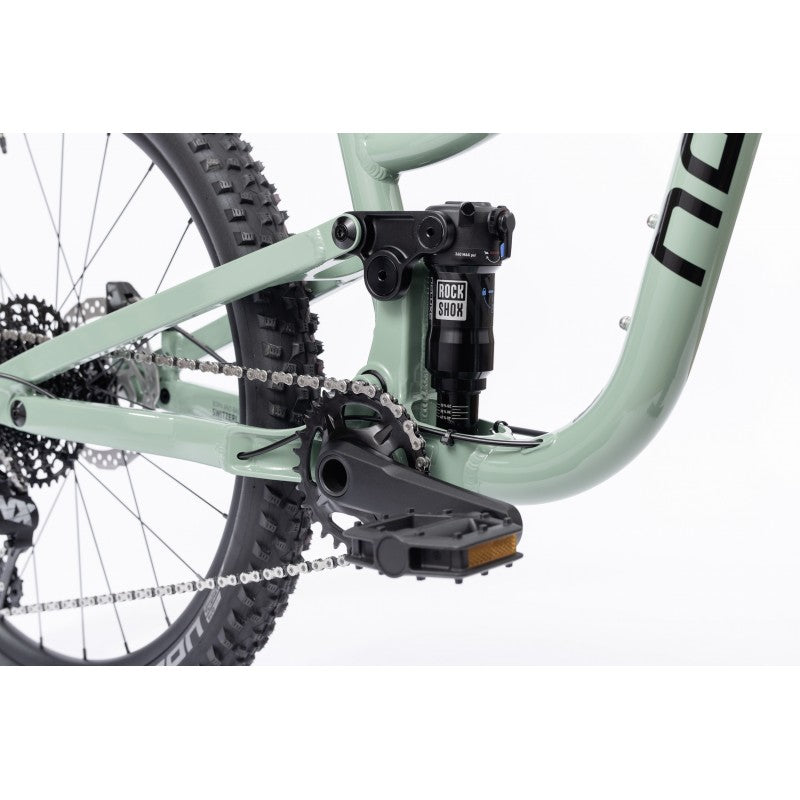

Rear suspension: RockShox Trunnion Deluxe Select+ RT (rebound adjustable, compression open/firm), “Kids Tune” for optimal response with light body weight, 120mm travel

FORK
Manitou Junit Machete 24” air suspension fork “Kids Tune”, 120mm, ABS compression/rebound, 15mm thru axle

COCKPIT
Handlebar: Ergonomic with 12° bend backwards, lightweight 7050 double-butted aluminum, 31.8mm clamp, 12.5mm rise, width 650mm
Grips: Anti-twist with extra small diameter (25mm)
Stem: 3D forged 6061T6 aluminum, 31.8mm clamp, length 40mm, angle +7°

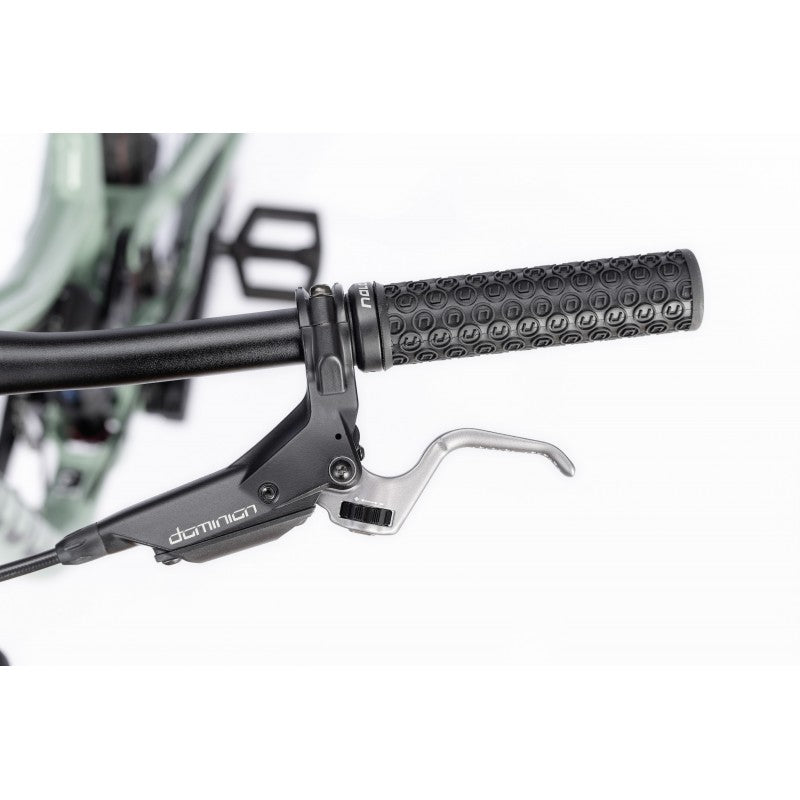

Brake levers: Hayes Dominion
Shifters: Shimano Deore I-Spec EV, 11-speed

DRIVECHAIN
Cranks: Lightweight aluminum with hollow axle and extra narrow Q-factor 149mm, 127mm length
Chainring: 28T direct mount
Rear derailleur: Shimano Deore 11-speed
Cassette: Shimano Deore 11-42T

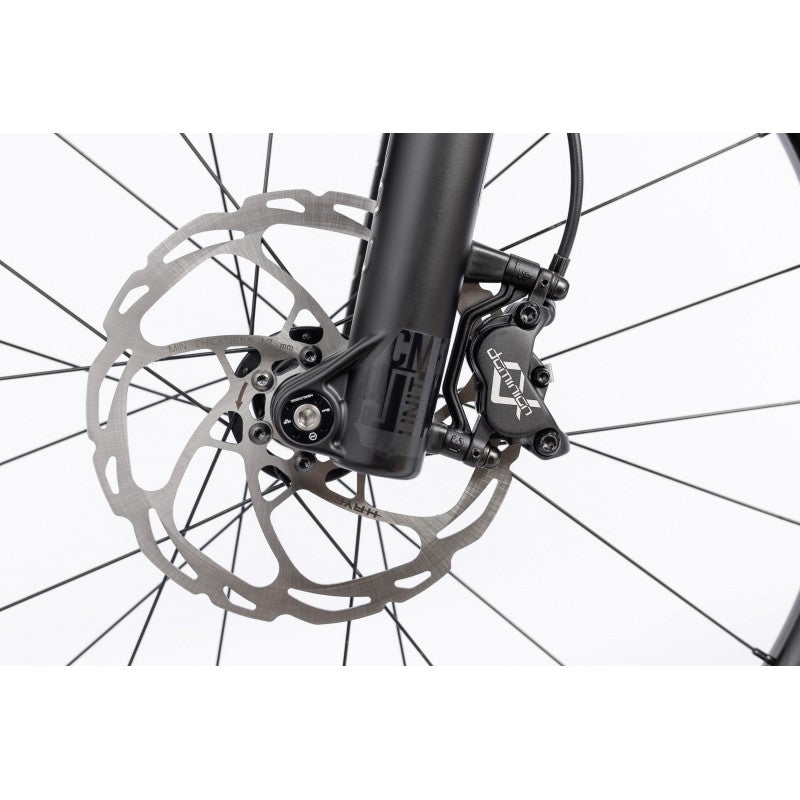

BRAKES
Hayes Dominion A4 (front 180mm/rear 160mm)

WHEELS
Rims: SunRingle DUROC30, 24 holes, tubeless ready
Hubs: Aluminum hubs with sealed industrial bearings
Tyres: Schwalbe Rocket Ron, 24x2.35, LiteSkin, Tubeless Easy, folding tire
Tubes: Kenda Super-Light with Presta valve

SEAT
Saddle: Age-appropriate ergonomics, robust upper material, free from plasticizers and harmful substances
Seat Post: Aluminum, diameter 31.6mm, length 250mm

ACCESSORIES
Pedals: VP-225

SAFETY CATEGORY
EN17406 3 (see use classification)
